GPS Watch Tracker GPS-990
 |
|
|
- GPS+LBS+WIFI Multi-Locating
A-GPS for fast locating
Fashionable Unique design
GSM 850/900/1800/1900 MHz
Built-in high sensitive MTK GPS
chip
LDS laser GSM antenna with
Stronger Signal
Environmental TPE wristband
Long working time with 400mAh
battery
Two-way communication function
SOS, ON/OFF Buttons
Geo-fence alarming

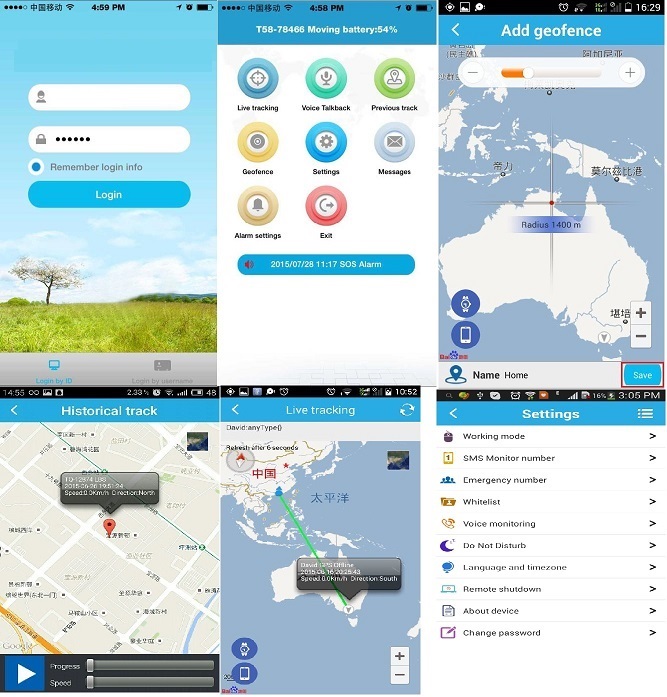

Web based tracking software and
Mobile APP
|
Positioning: GPS satellite positioning + AGPS auxiliary positioning + LBS base station positioning
Positioning accuracy: GPS location 5 to 15m WIFI location 15-100m
base station location-----100-1000m
Working mode setting
There are three kinds of working mode. User through setting in the phone APP software function to set the working mode.
1, rapid positioning (1 minute) : equipment at 1 minute intervals update location information, rapid positioning model the locator use battery faster.
2,standard positioning (10 minutes) : equipment according to the time of 10 minutes interval update location information.
3,save electricity positioning (an hour): equipment in one hour time interval update location information, the
Basic Specifications

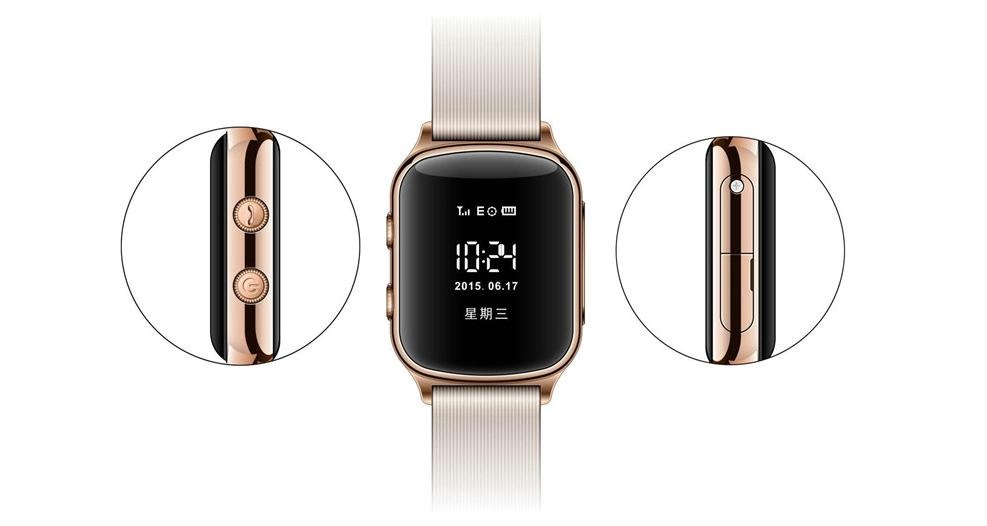

Structure |
Model |
MI-G6 |
Style |
Stylish and elegant |
Size |
22.5(d)X14.6mm |
Button |
One button(power button and SOS button) |
Dsiplay |
0.88mm OLED |
GPS antenna |
Built-in high sensitivity ceramic antenna |
GSM antenna |
FPC |
Battery |
450mAh |
SIM card slot |
One slot |
G-sensor |
Supported |
I/O port |
USB port |
Waterproof level |
IP54 |
2.Hardware |
Hardware |
Solution |
MTK MT6260 |
GPS chip |
MTK3326 |
GPRS |
Class12 |
GPS singals |
L1,1575.42MHz C/A code |
GPS channels |
20 channels |
GPS chip receiving sensitivity |
Tracking sensitivity:-159dBm,acquisition sensitivity:
-143dBm |
GPS Positioning accuracy |
5~15m |
Accuracy base station location |
100-1000M |
Minimum standby current |
<0.5 mA |
Average standby current |
<2.5 mA |
Average working current |
<55mA |
Temperature |
-20~70℃ |
Humidity |
5% to 95% no condensation |
Certification |
Can pass national CTA,3C and CE certificate |
GPS antenna |
Built-in high sensitivity ceramic antenna |
GSM antenna |
Built-in four frequency PIFA antenna |
Bluetooth |
Supported |
G-sensor |
Compatible |
Speaker |
1208 |
MIC |
Supported |
Dimension:
45X35x13.5mm
Net Weight: 38g
Box Size:
165x90x55mm
Gross Weight:
197g per box
56pcs/carton.
Carton size:
41*36*26cm
Gross weight:
8kg/carton
|
